AVerMedia D133ONB Industrial Box PC — NVIDIA Jetson Orin NX/Orin Nano

The AVerMedia D133ONB is an ultra-compact industrial box PC built around NVIDIA Jetson Orin Nano and Orin NX modules. It is designed for engineers who need to take a computer-vision or edge AI application from prototype to field deployment in a footprint where a full-size industrial PC will not fit. If your project needs dual-camera capture and real-time inferencing in a space smaller than a lunchbox, this is built for it.

Who it's for

• Stereo vision and dual-angle camera projects that need two native camera inputs without an external capture card
• Smart retail, smart camera and smart city deployments, where an open dev-kit board is a liability
• Machine-vision, AIoT and robotics teams moving from a Jetson developer kit to field-hardened hardware
• Cabinets, kiosks and outdoor enclosures that see real temperature swings

Key features

• NVIDIA Jetson Orin Nano or Orin NX module: the D133ONB ships with an Orin Nano 8GB module, while the closely related D133OXB variant offers Orin NX 8GB or 16GB for higher throughput. Both are ready for computer-vision and edge AI inferencing, with no separate carrier-board integration required.

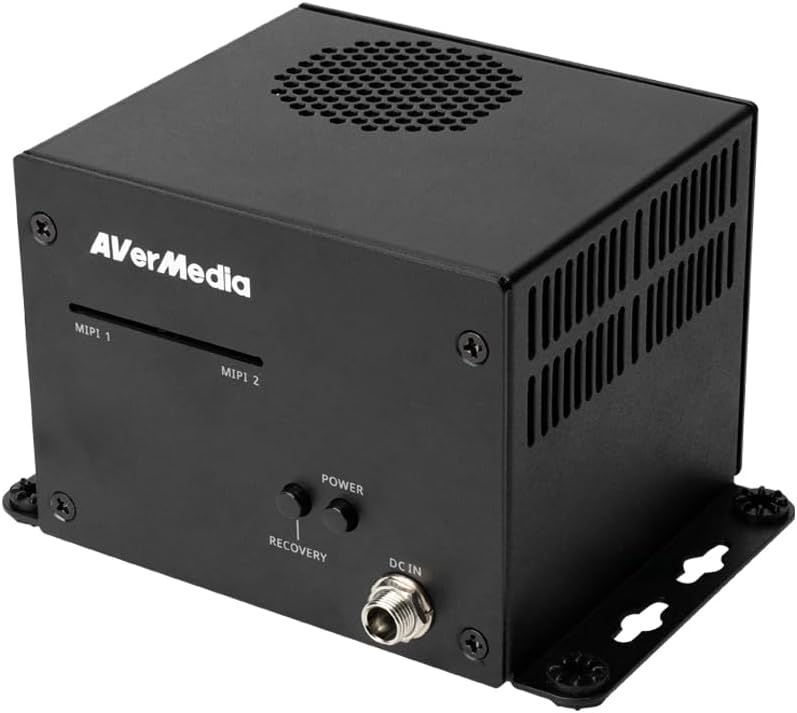

• Pocket-sized chassis: 93 x 81.2 x 81.9mm, for deployments where every centimeter of cabinet or enclosure space is already spoken for.

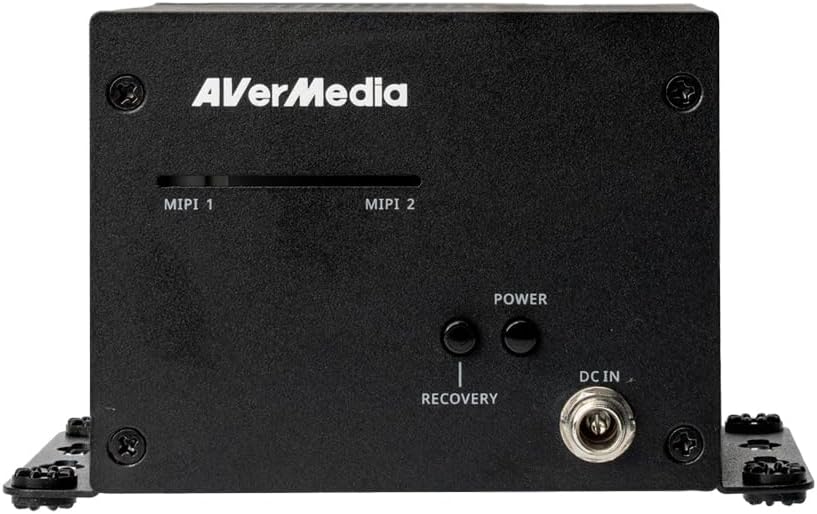

• Dual MIPI camera inputs: 2x 4-lane MIPI CSI-2 connectors (22-pin FPC, 0.5mm pitch) for stereo vision, dual-angle coverage or independent camera feeds without an external capture card.
• 256GB NVMe SSD included: a pre-installed M.2 Key M 2280 NVMe drive ships standard, so there is no separate storage purchase before you can start deploying.

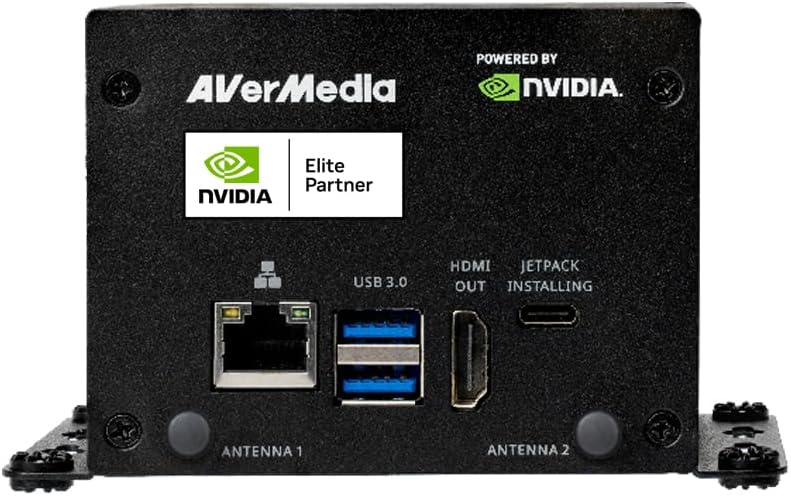

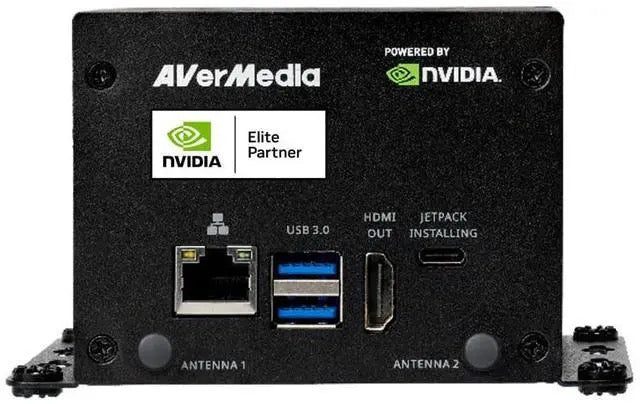

• Display and networking built in: HDMI output at up to 4K30 (Orin Nano) or 4K60 (Orin NX), 1x Gigabit Ethernet (RJ-45) and an M.2 Key E slot for Wi-Fi.
• Industrial expansion header: a 20-pin header exposing 2x I2C, 1x UART and 9x GPIO for sensor integration, actuator control and custom hardware triggers.
• Wide operating range: rated from –25°C to 60°C for cabinets, kiosks and outdoor enclosures.
• RTC battery and health monitoring: an onboard real-time clock with MCU-monitored battery life, useful for unattended installations.

Specifications

Good to know

• AVerMedia does not publish a specific AI TOPS figure for the D133ONB. The number that matters is the Jetson module’s own published rating: NVIDIA’s Orin Nano and Orin NX modules span roughly 40–100 TOPS depending on configuration and Super Mode, and the module you select sets that ceiling.
• This is an inferencing and computer-vision deployment platform running the standard NVIDIA JetPack/L4T stack, so models trained and validated on a Jetson developer kit deploy with minimal changes.
• AVerMedia positions the D133/DX33 box PC family for smart retail, smart camera and smart city solutions.

Pick the D133ONB when you need a sealed, mount-and-forget Jetson box with two native camera inputs. If you need an Orin NX module for higher throughput, look at the D133OXB variant instead.
