Beelink EQ mini Wildcat Lake Core 3 304
Sale price
$429.00
Regular price $499.00

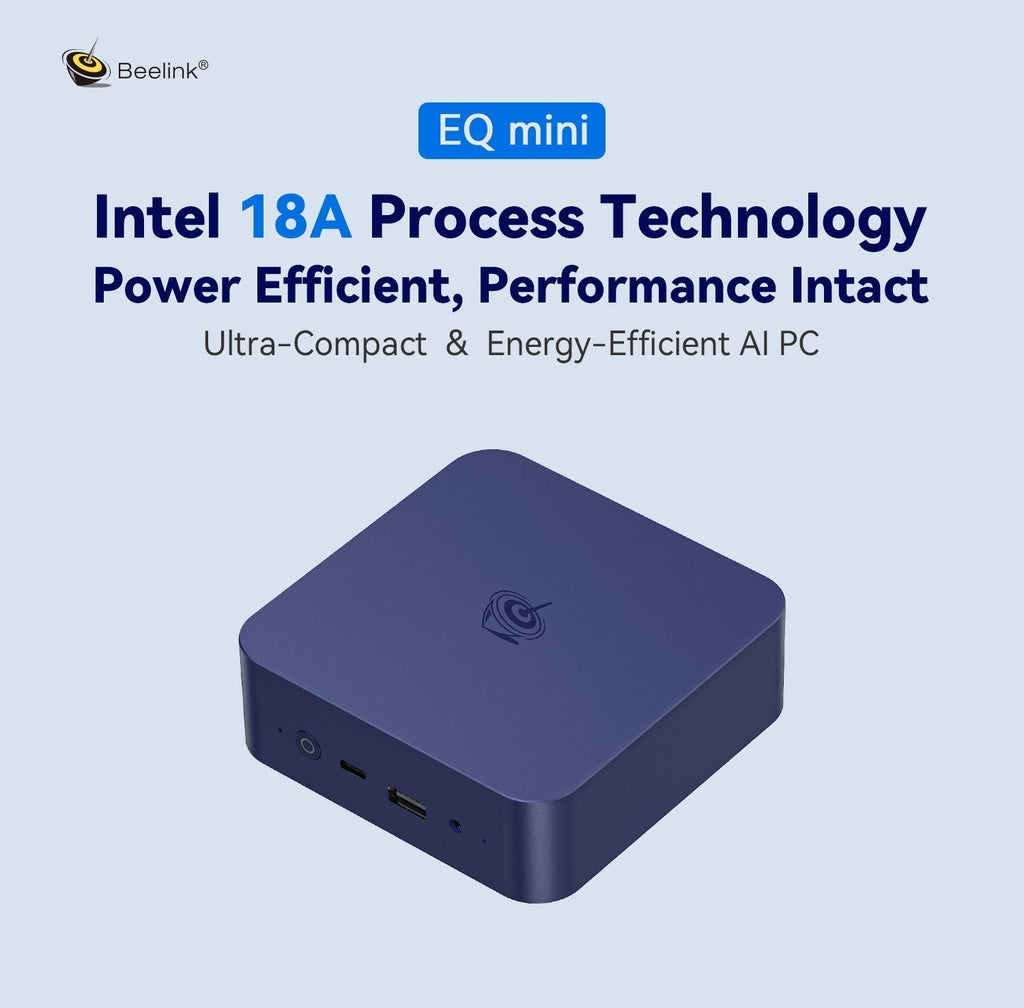

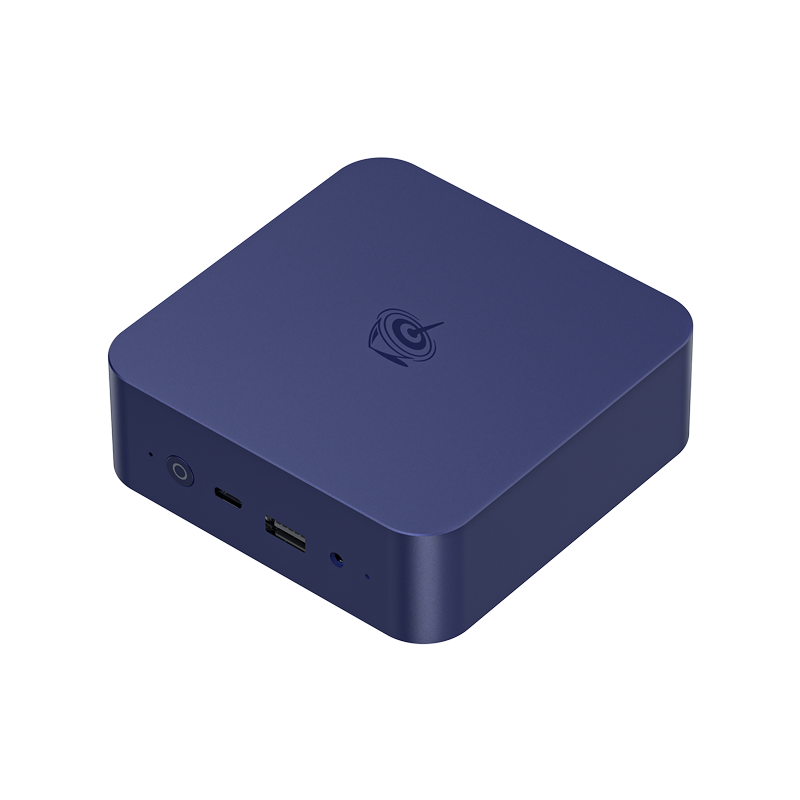

The Beelink EQ mini is an Intel® Core™ 3 304 mini PC on Intel's 18A process, shrunk to one of the smallest machines in Beelink's lineup at approx. 112 x 112 x 37mm. It keeps the connectivity that matters: dual Thunderbolt 4, 10Gbps Ethernet and built-in UFS 3.1 storage. It suits anyone short on desk space who still wants fast ports.
Who it's for
- Anyone mounting a PC behind a monitor or tucking one into a tight media console
- Light content creators editing off a fast Thunderbolt SSD
- Home lab users who need a compact network endpoint with 10Gbps bandwidth
- Everyday users who want a tidy PC for browsing, streaming and office work, with upgrade room through dual M.2 slots
Key features

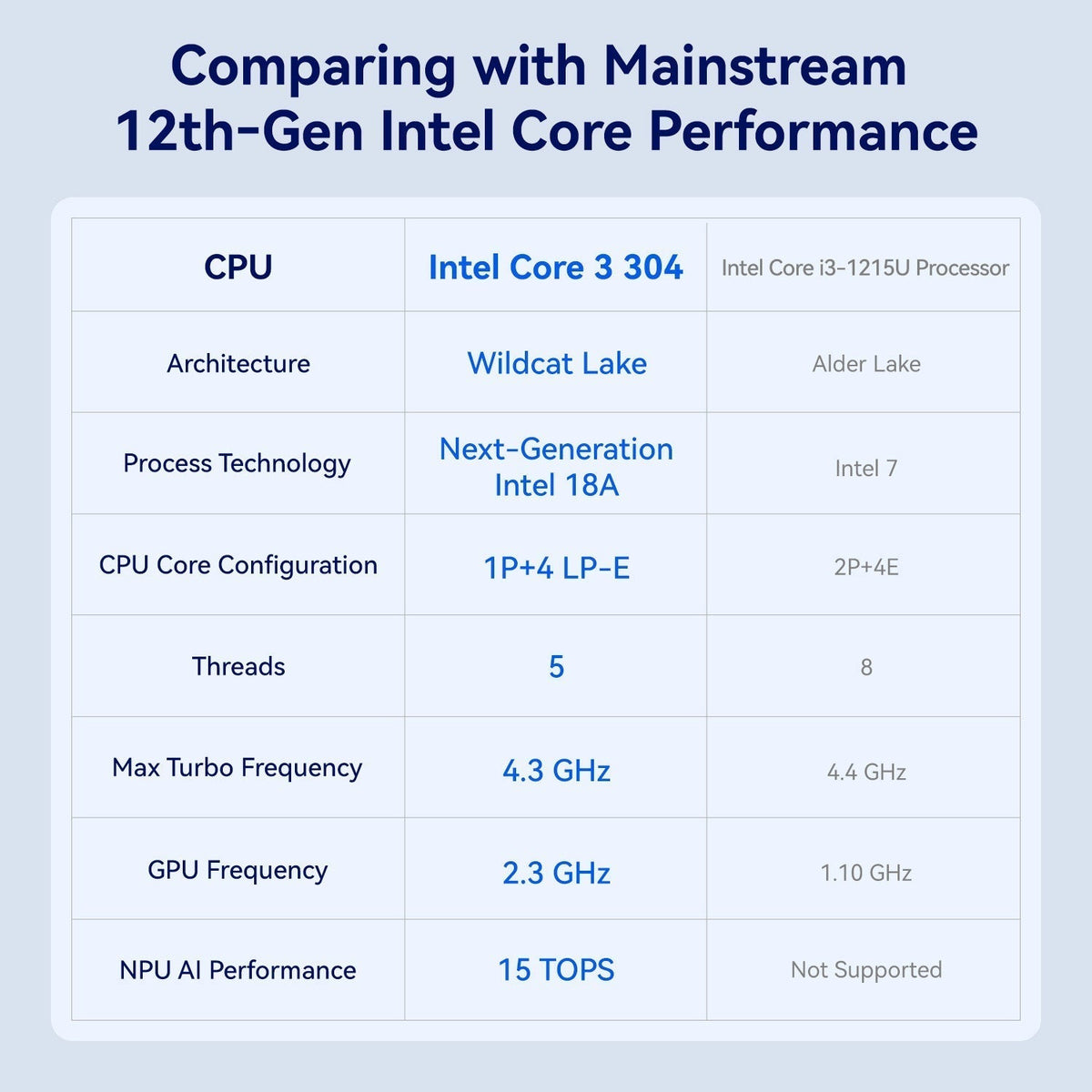

- Intel® Core™ 3-304 “Wildcat Lake” processor: A 5-core / 5-thread chip on Intel's 18A process, boosting up to 4.3GHz. Low power draw and low heat output suit the tiny chassis.
- 24 TOPS on-device AI: Local AI processing for supported lightweight workloads, keeping data on the device rather than sending it to the cloud.

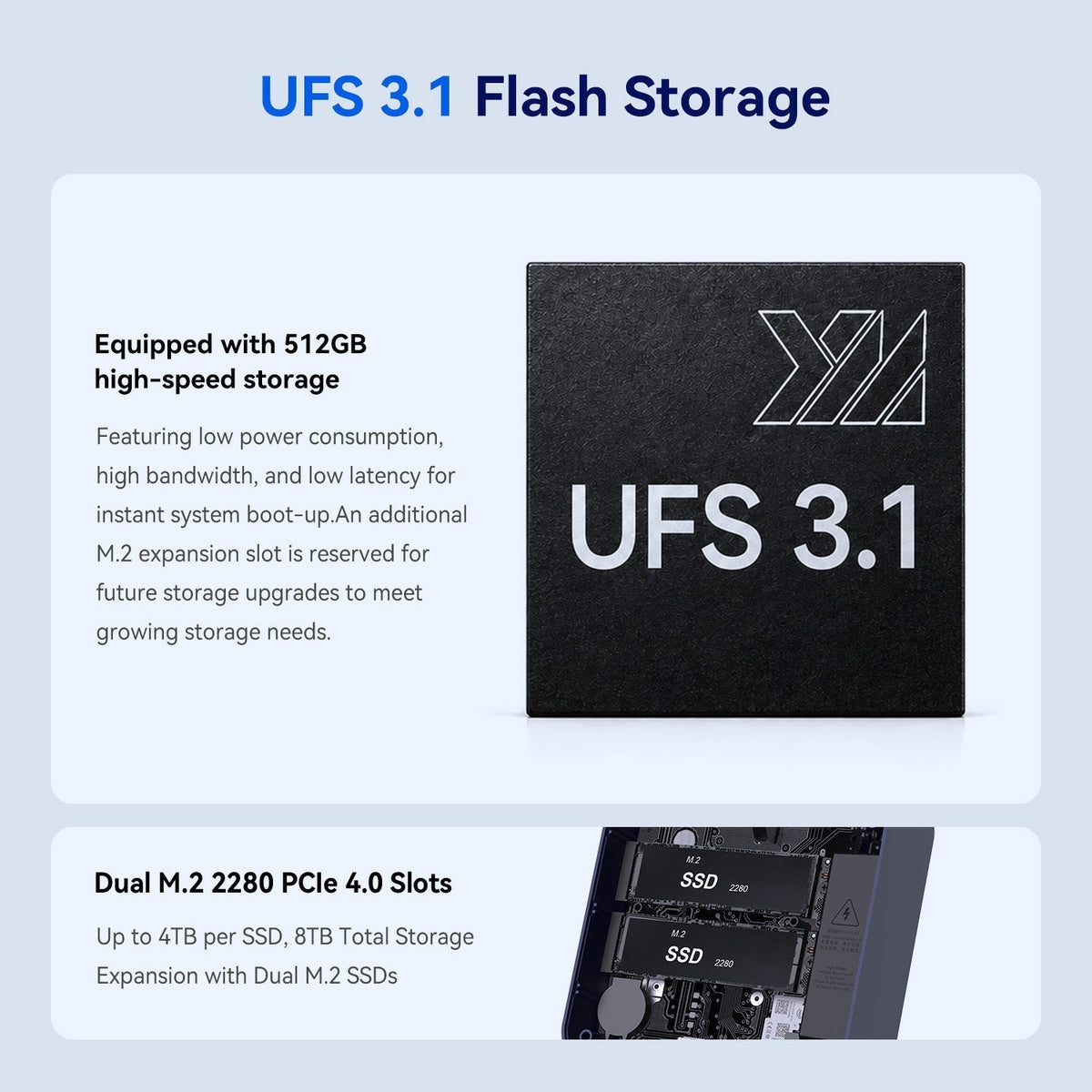

- 512GB UFS 3.1 built-in storage: High-bandwidth, low-latency flash for quick boot times, with dual M.2 2280 PCIe 4.0 slots (up to 4TB per slot) available if you need more room.

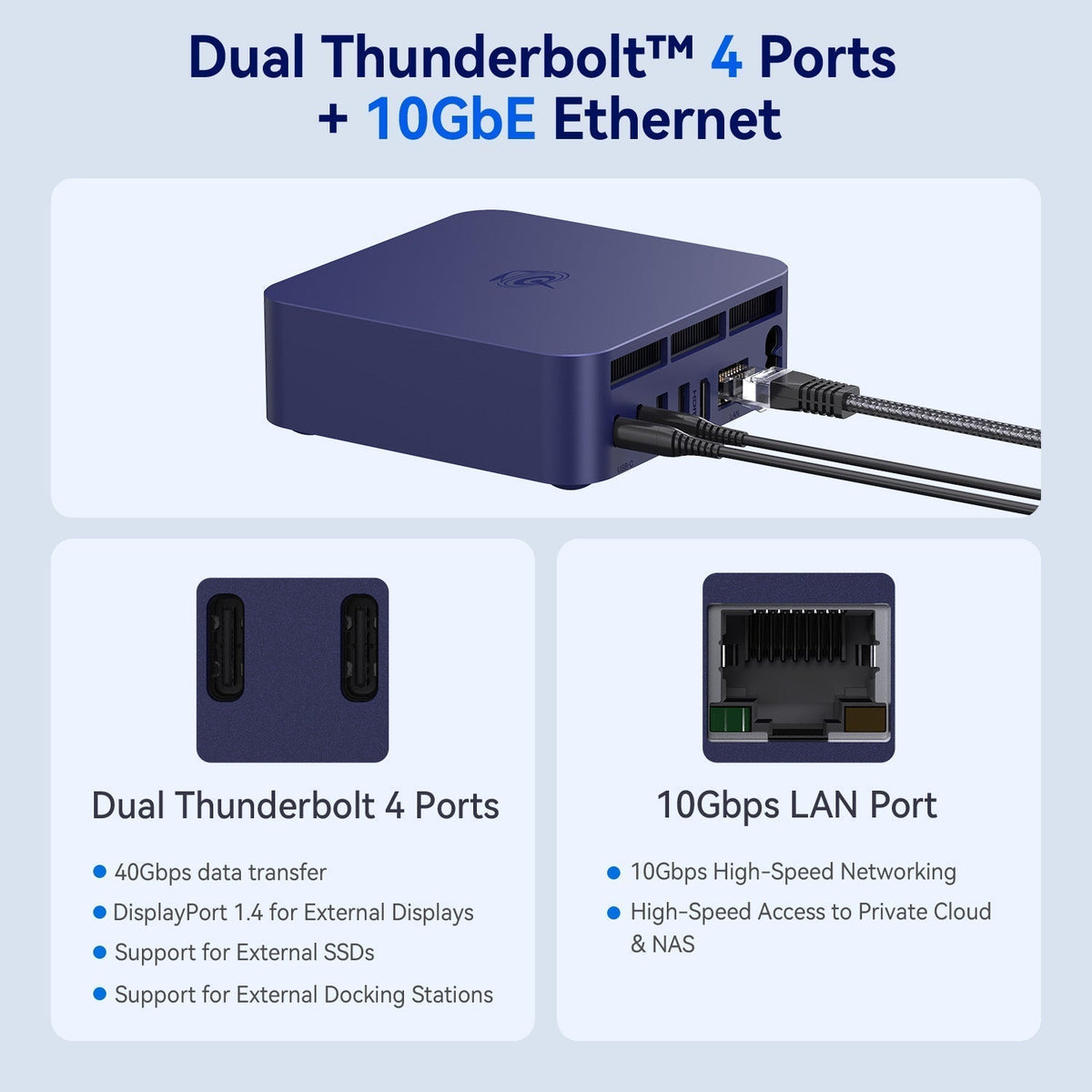

- 10Gbps Ethernet: A full 10 Gigabit LAN port suits fast file transfers, NAS access and bandwidth-heavy workloads.

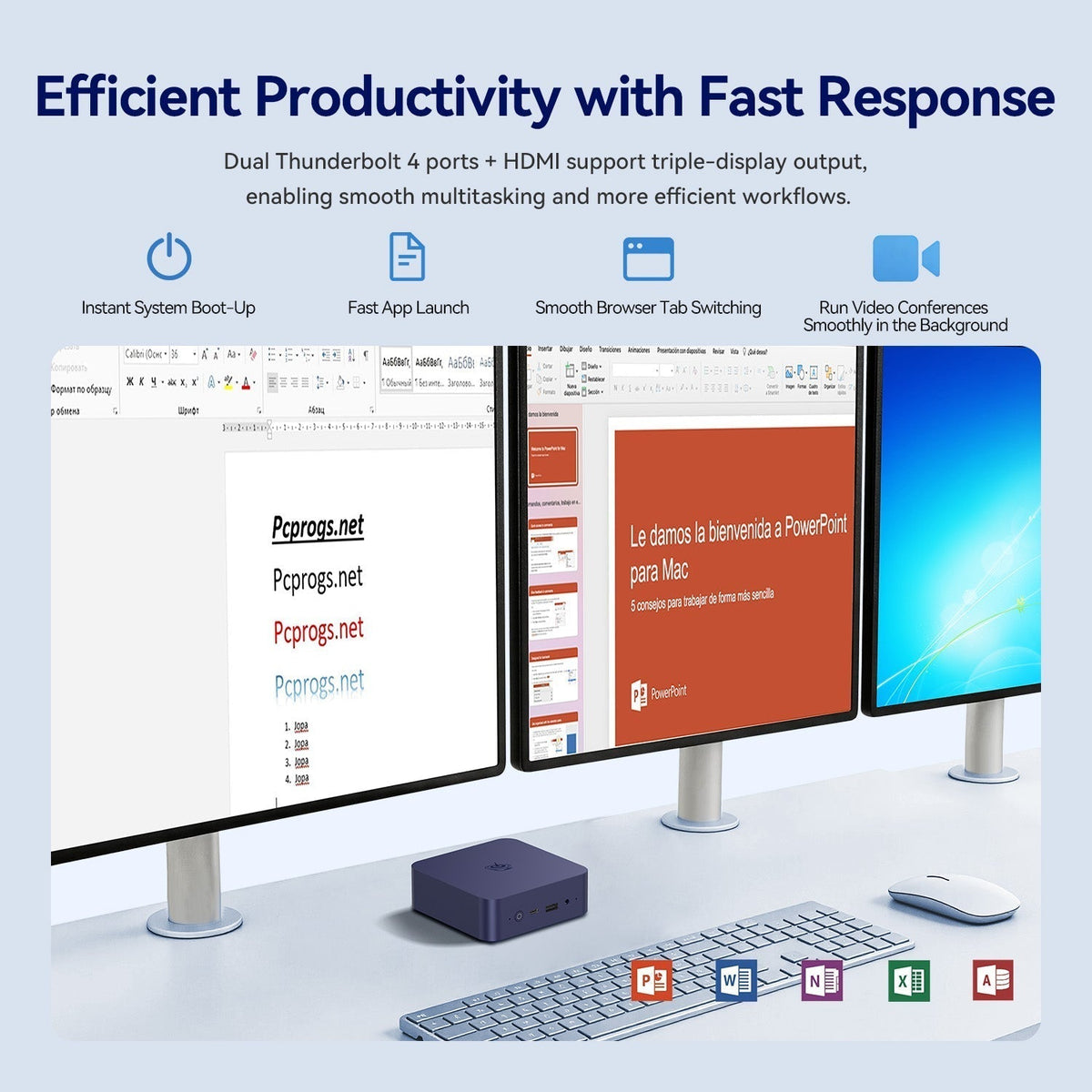

- Dual 40Gbps Thunderbolt 4 ports: Two Thunderbolt 4 connections support high-speed external storage, docking stations and additional displays.

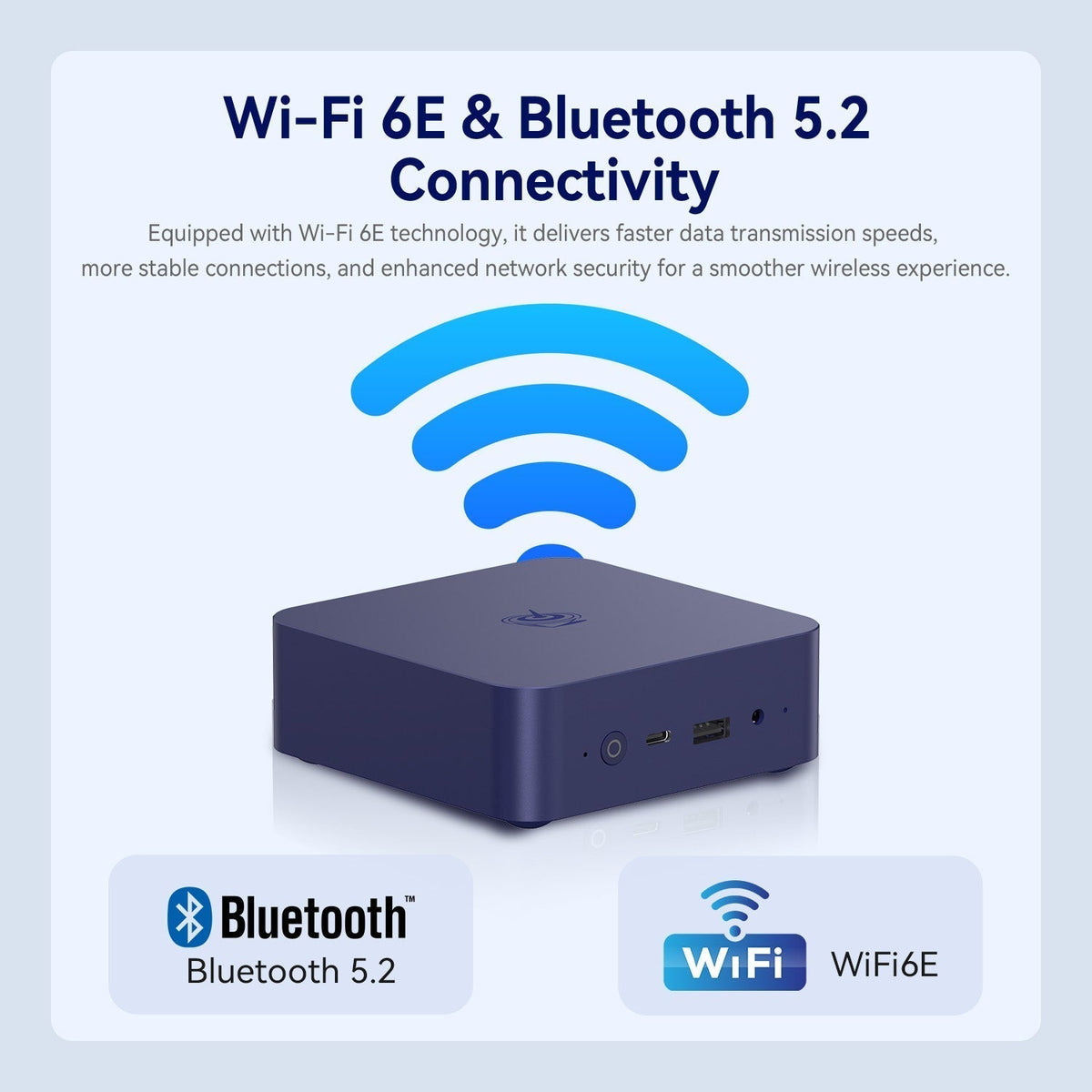

- Wi-Fi 6 and Bluetooth 5.2: Dual-band wireless (MT7922 chipset) for a wire-free setup when you do not need the Ethernet port.

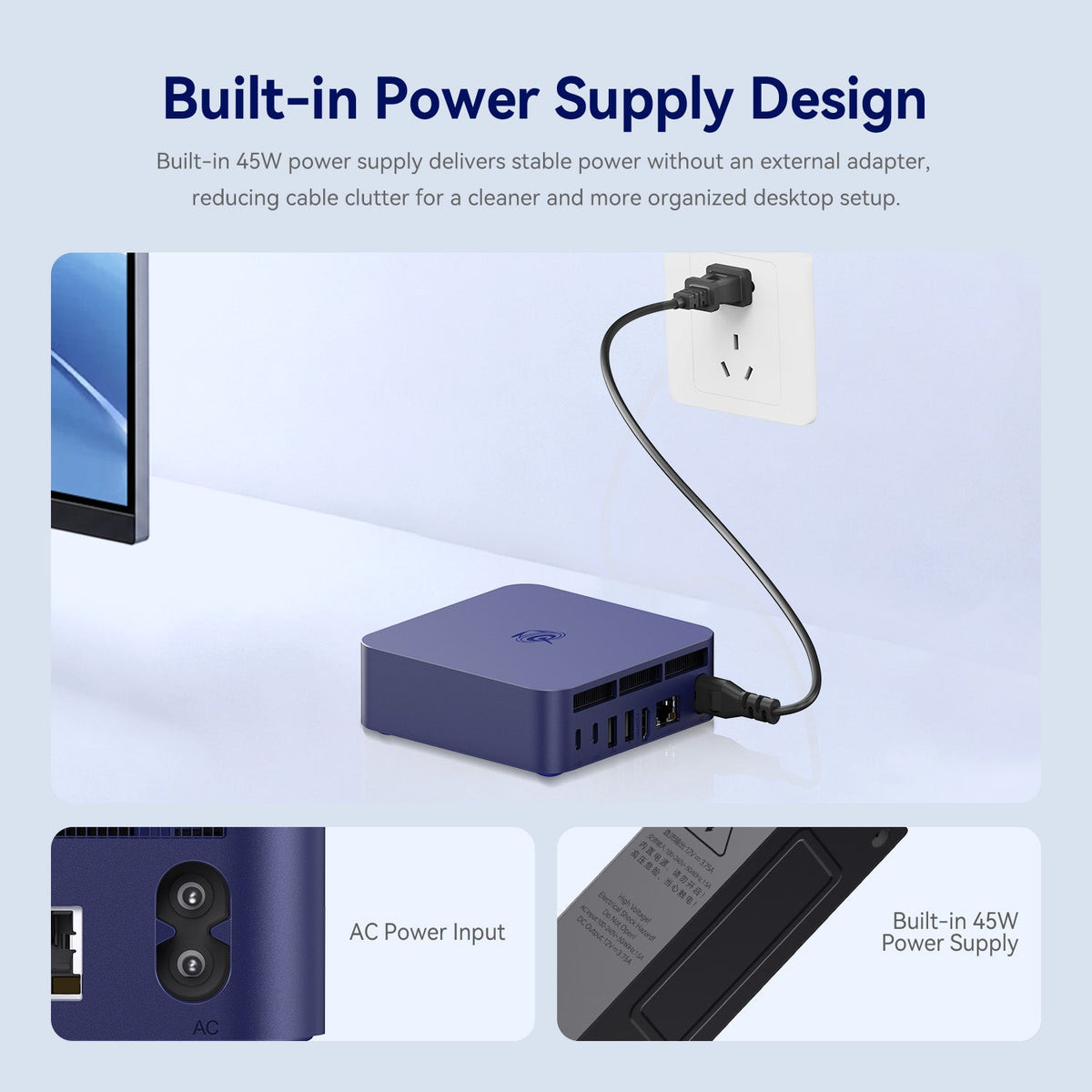

- Built-in 45W power supply: The integrated PSU means no separate power brick.

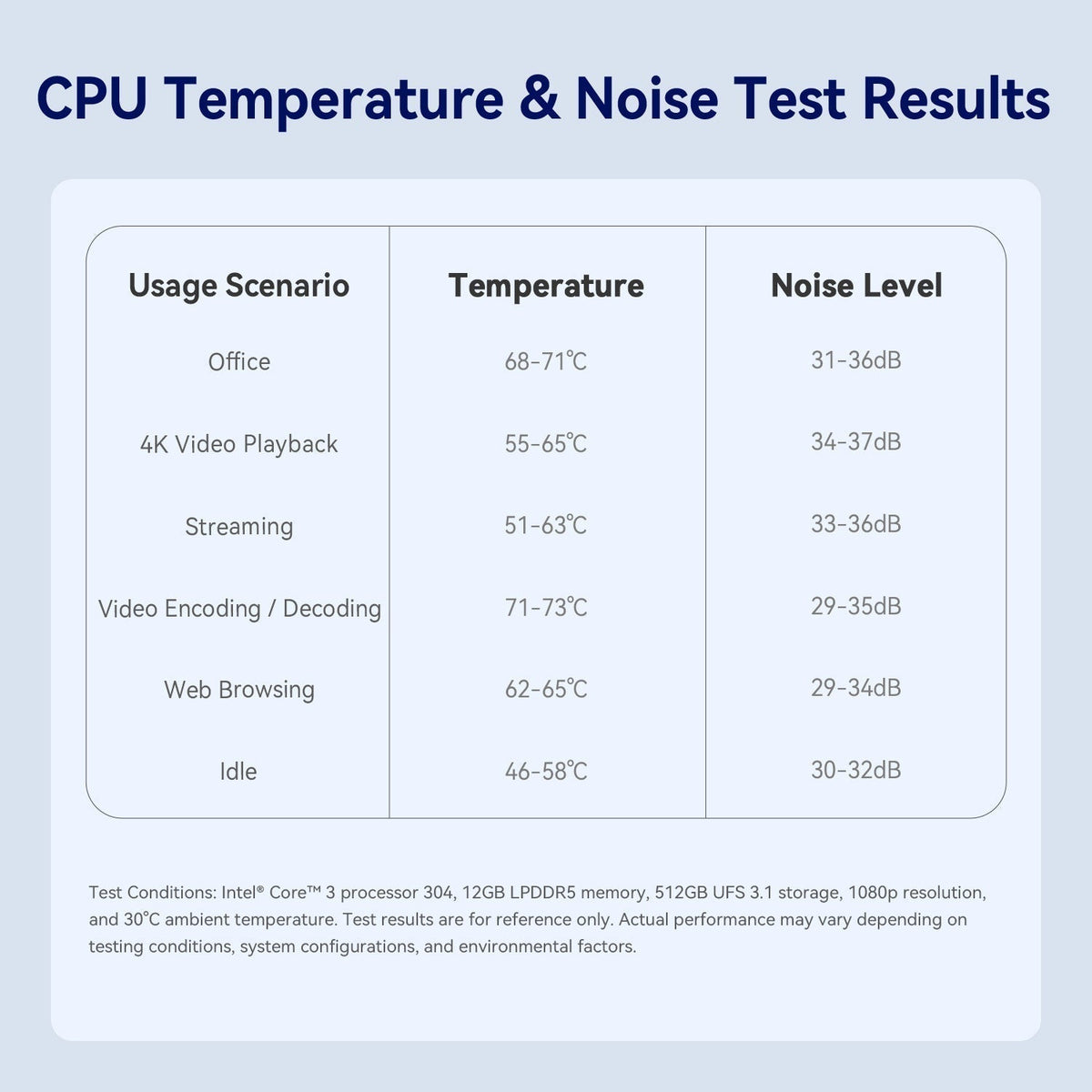

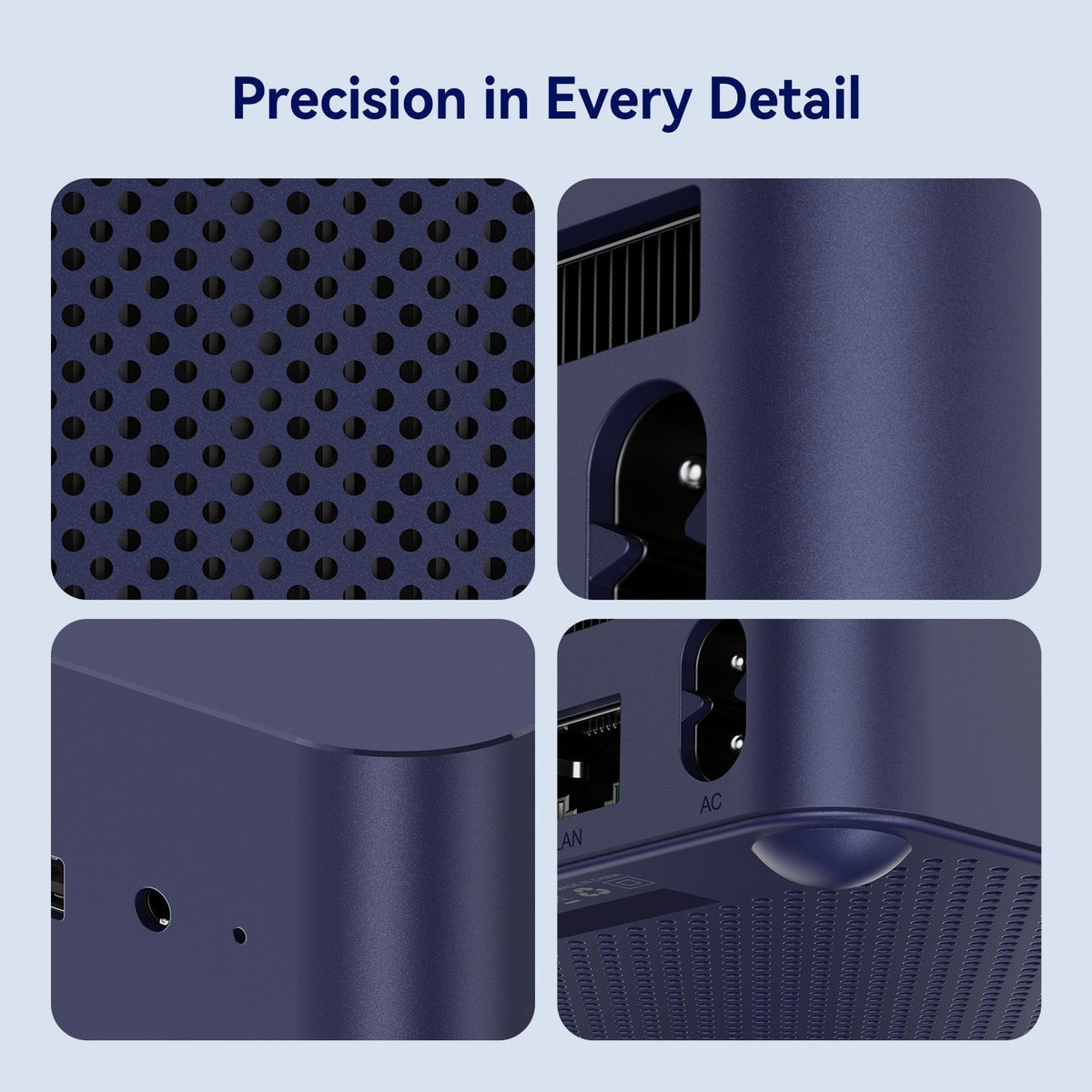

- Low-speed silent fan, ~32dB operation: Bottom air-intake cooling keeps this small chassis quiet in a bedroom, living room or shared workspace.

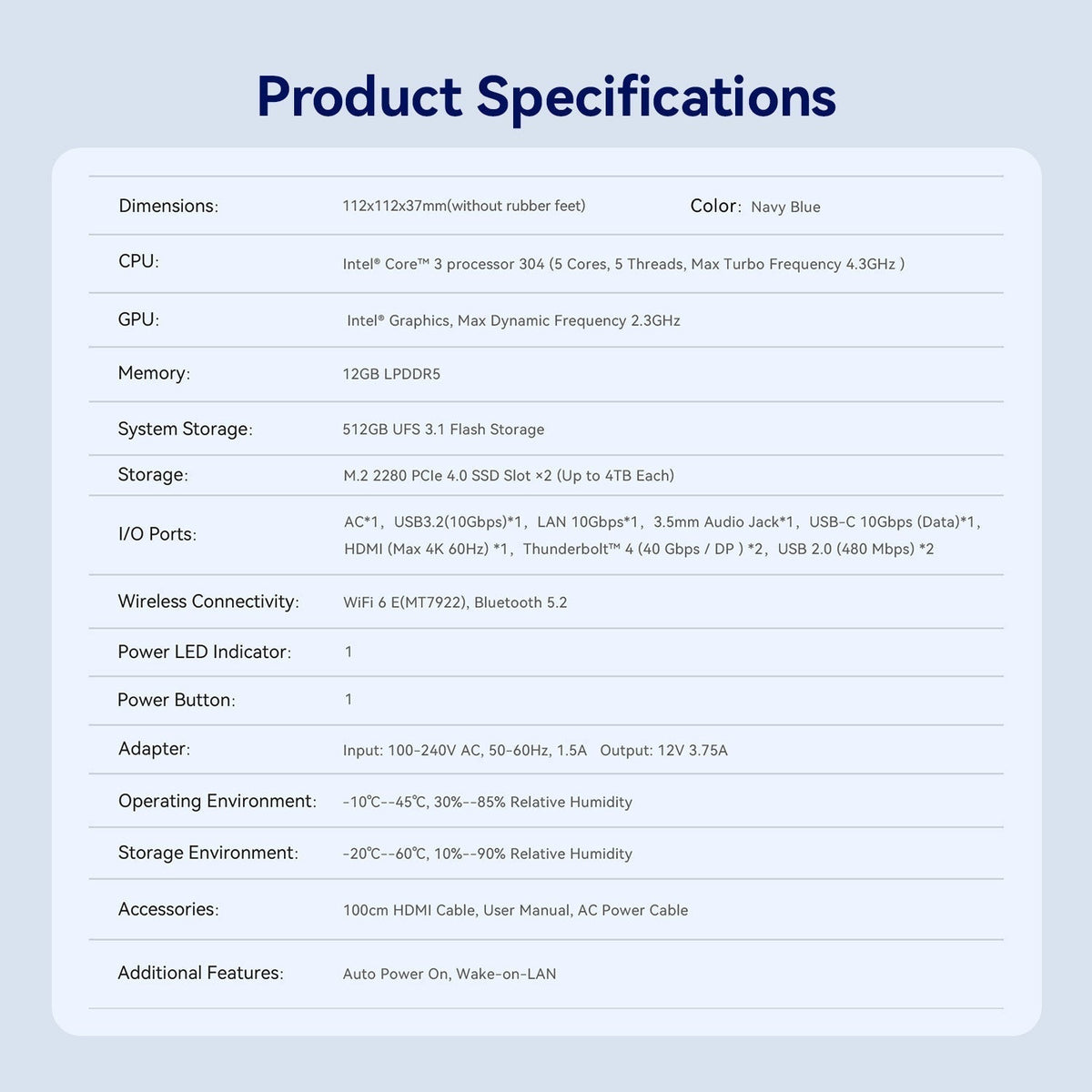

Specifications
| Spec | Detail |
|---|---|
| Processor | Intel® Core™ 3-304, 5 cores / 5 threads, up to 4.3GHz, Intel 18A process |
| Graphics / AI | Intel Xe3-LPG graphics; up to 24 TOPS on-device AI compute |
| Memory | LPDDR5 5600MHz (configuration-dependent) |
| Storage | 512GB UFS 3.1 built-in, plus dual M.2 2280 PCIe 4.0 expansion slots (up to 4TB each) |
| Networking | 10Gbps Ethernet, Wi-Fi 6 (MT7922), Bluetooth 5.2 |

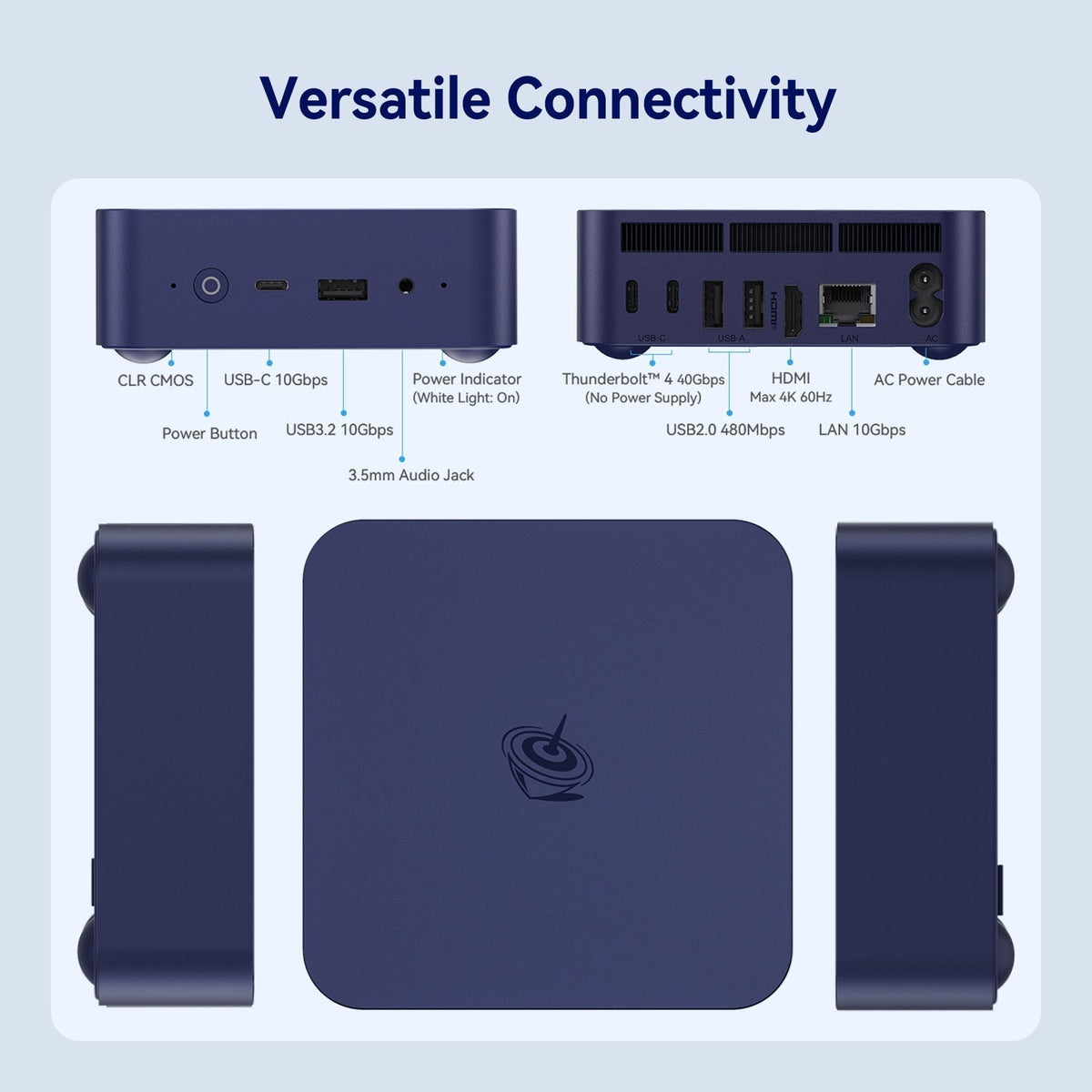

| Ports | Dual Thunderbolt 4 / USB4 (40Gbps each), HDMI (4K @ 60Hz) |
| Operating system | Windows 11 Pro |
| Cooling | Low-speed silent fan, bottom air intake, ~32dB operation |
| Power supply | Integrated 45W PSU |

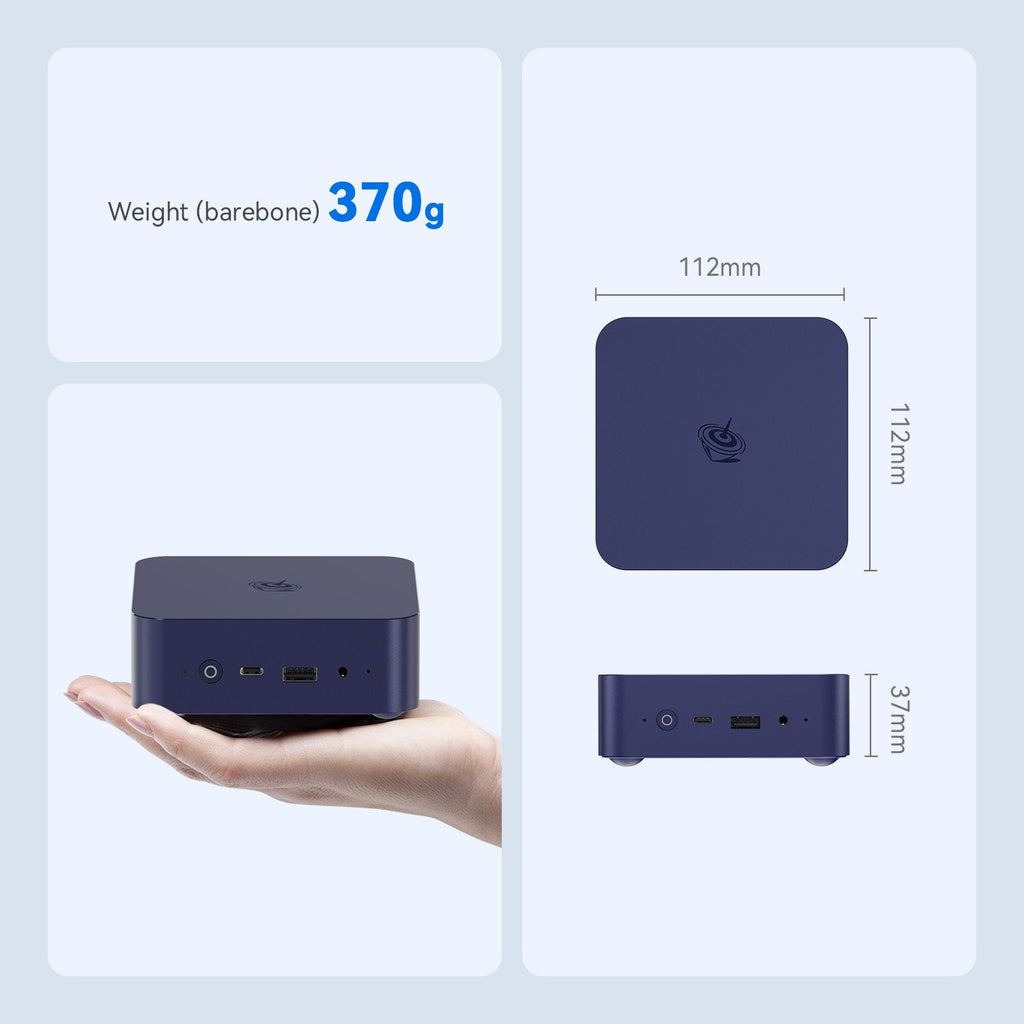

| Dimensions | Approx. 112 x 112 x 37mm, one of the most compact mini PCs in Beelink's lineup |
Good to know

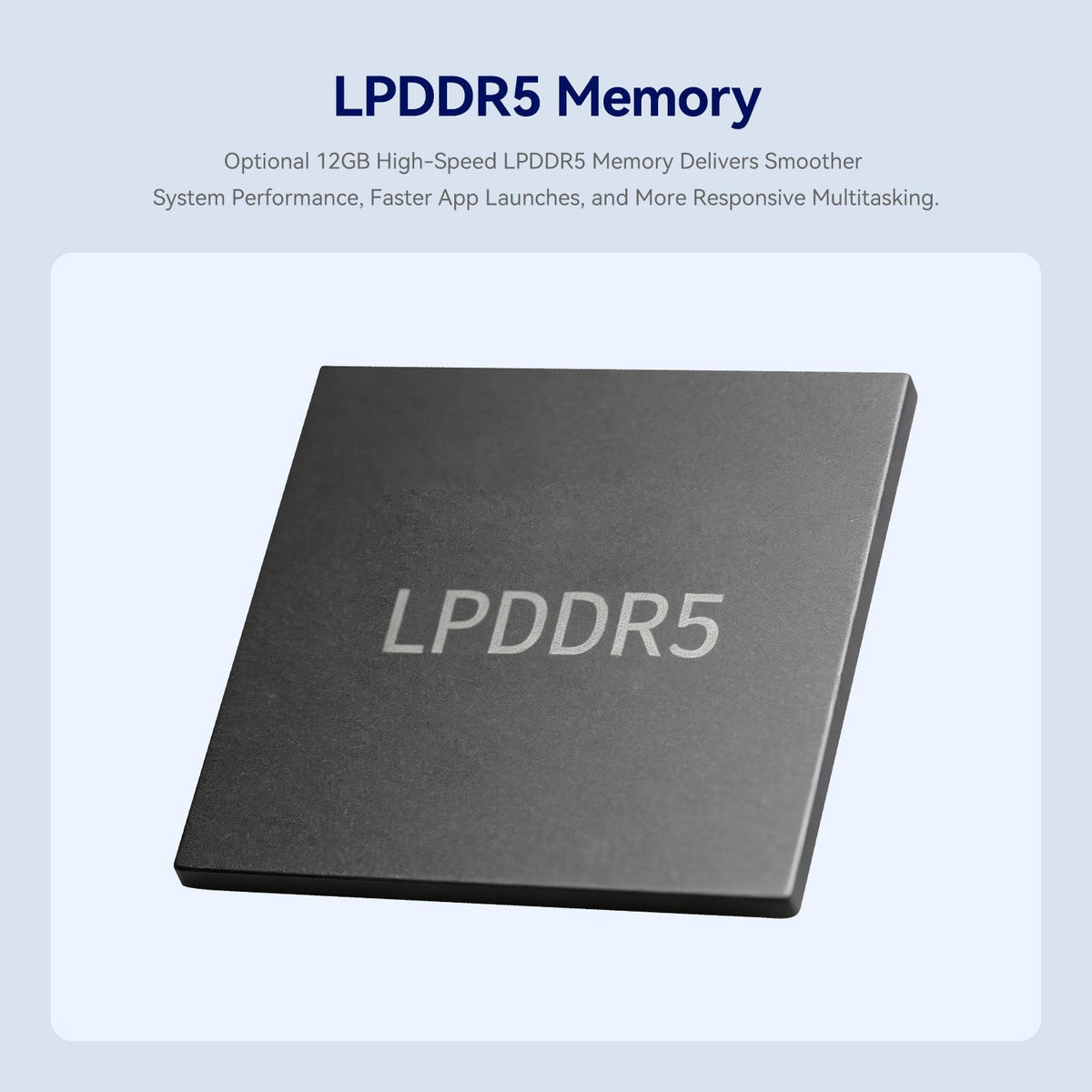

- Memory is LPDDR5 5600MHz and depends on the configuration you choose.
- The Core 3 304 has 5 cores and 5 threads. It is built for efficiency, not for heavy compute.
Choose the EQ mini when footprint is the priority and you still want dual Thunderbolt 4 and 10Gbps Ethernet. If you want a larger chassis with a bigger power supply, look at the EQi.
