Beelink Mate SE 80Gbps Dock for SER8、SER9 Pro/Max and SER10 Max
$119.00

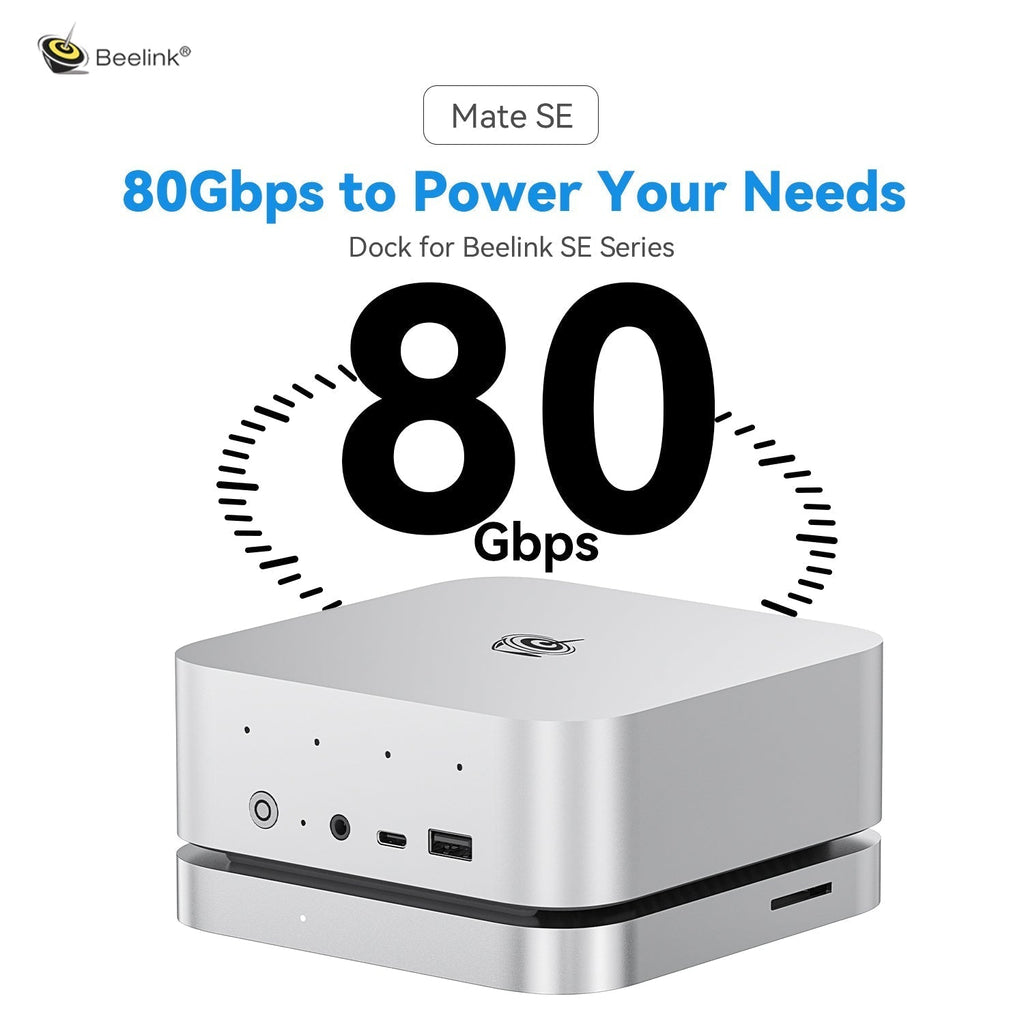

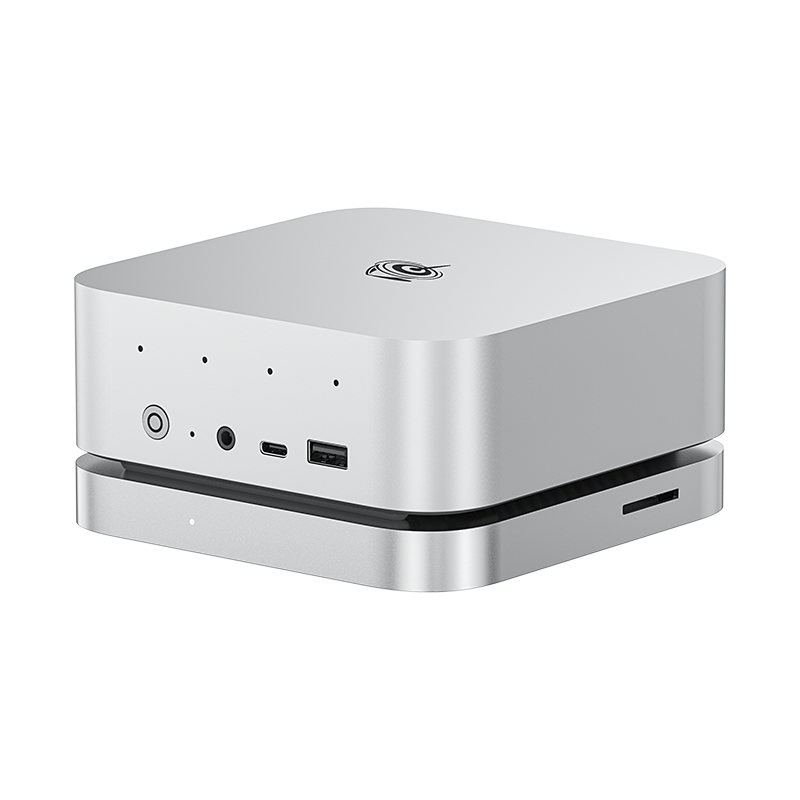

The Beelink Mate SE is an 80Gbps docking station built to match the SER8, SER9 Pro, SER9 MAX and SER10 MAX mini PCs. Through a single USB-C connection it adds dual-SSD storage expansion, an extra 2.5GbE network port, and USB-A and SD card connectivity. It is for owners whose SER-series onboard storage is filling up, or who want a card reader and extra USB ports without a pile of dongles.
Who it's for
- SER8, SER9 Pro, SER9 MAX and SER10 MAX owners who want up to 16TB more NVMe storage without opening the chassis
- Photographers and videographers pulling footage off camera cards through the SD 4.0 reader
- Creators keeping large video files, media libraries or project archives on a fast second drive
- Users who want a dedicated wired 2.5GbE connection that does not compete with WiFi

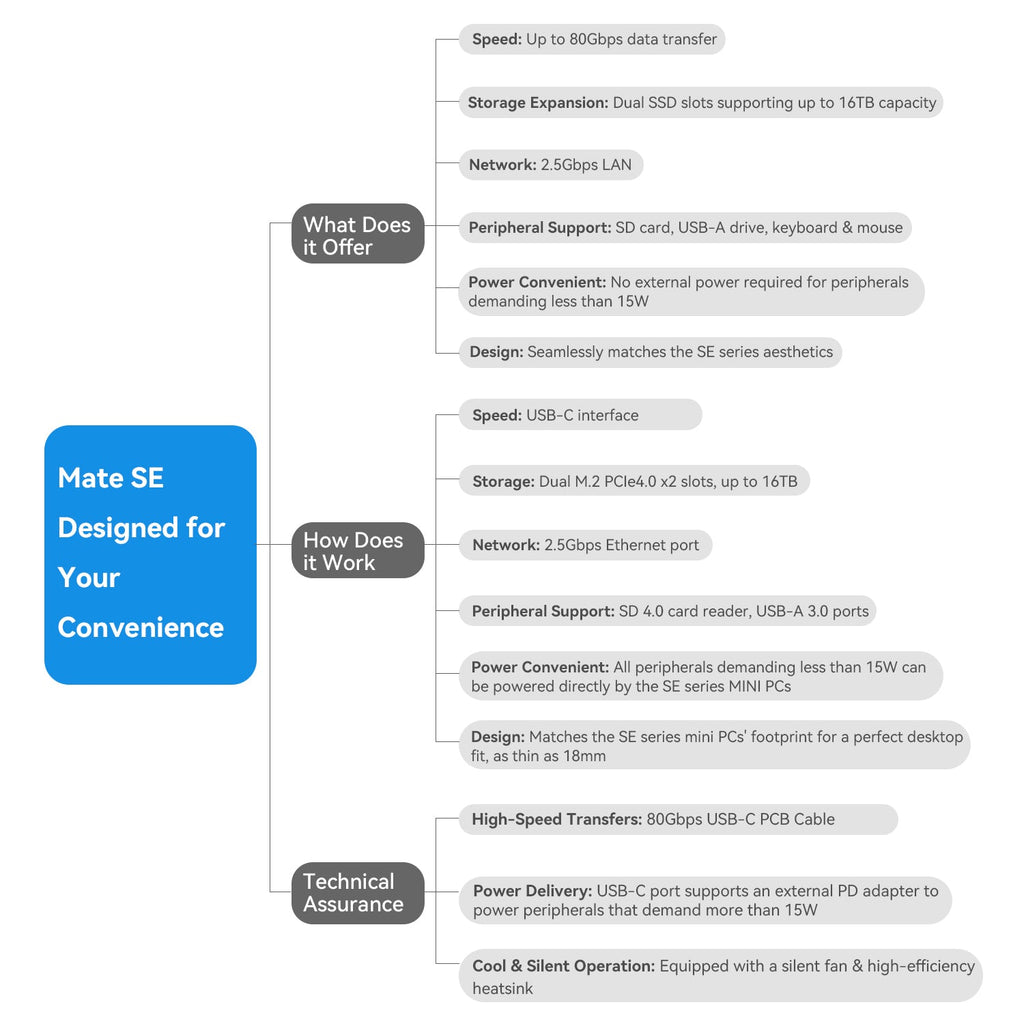

Key features
- 80Gbps USB-C connection: Up to 80Gbps between the dock and your SER-series mini PC, roughly double what USB4/Thunderbolt 3 offers (those top out around 40Gbps), so a fast NVMe drive is not bottlenecked by the link.

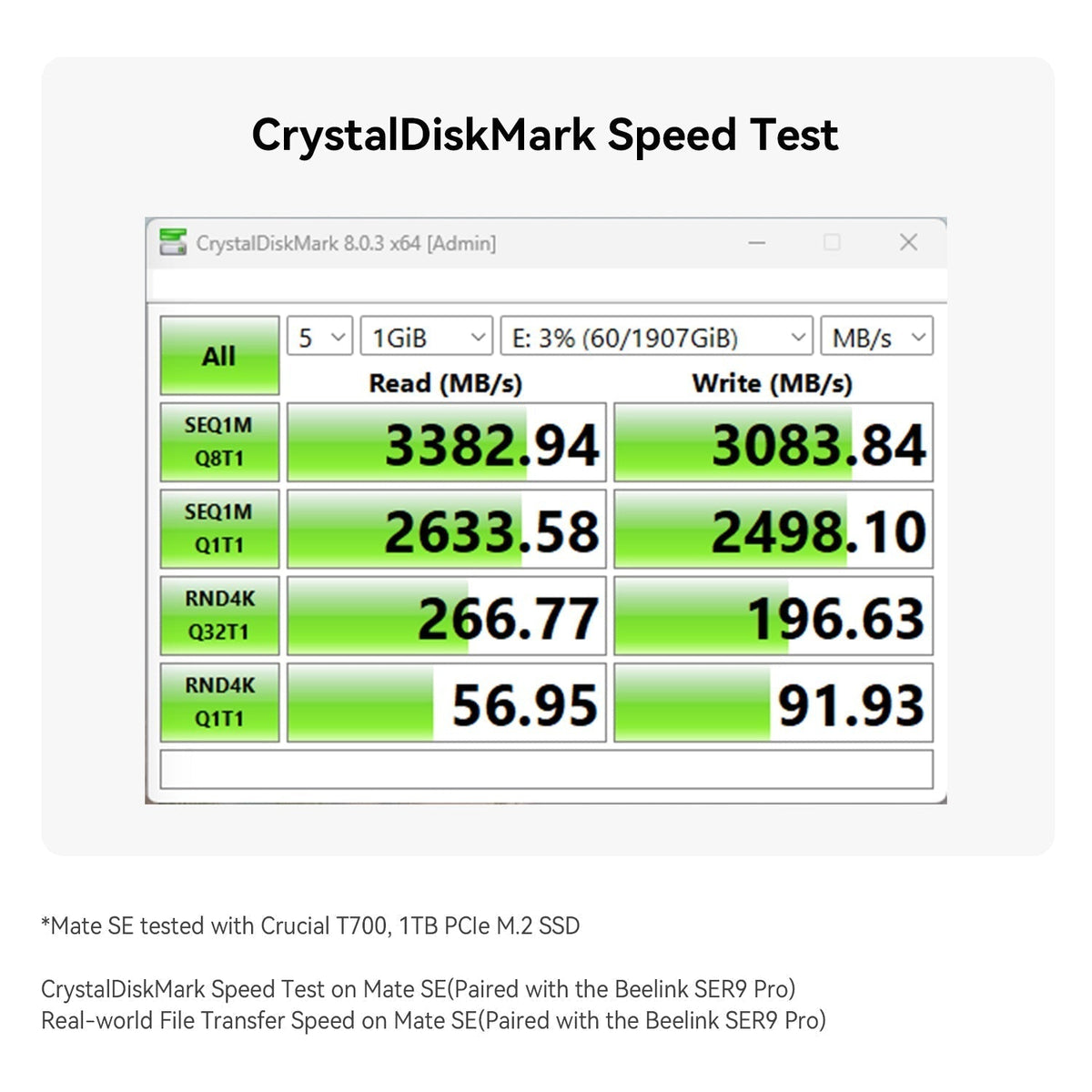

- Dual M.2 PCIe 4.0 x2 SSD slots, up to 16TB: Two independent NVMe slots expand storage at PCIe 4.0 x2 speeds, which is far faster than a cheap external USB enclosure.
- 2.5GbE Ethernet port: A dedicated wired network connection for data-intensive and latency-sensitive tasks.

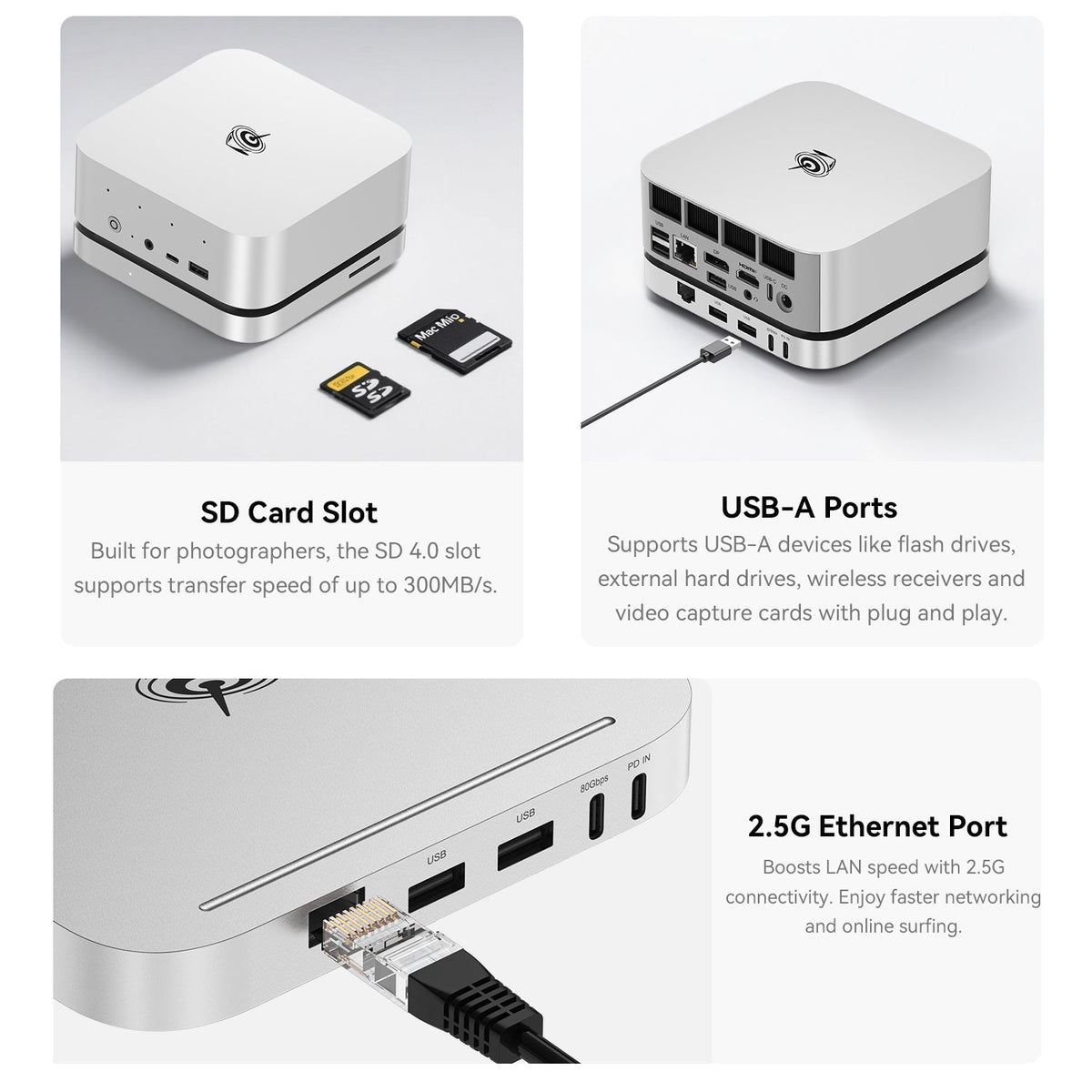

- SD 4.0 card reader + 2x USB-A 3.0 ports: Covers camera memory cards and keyboard, mouse and other peripherals (up to 15W combined) without a separate hub.

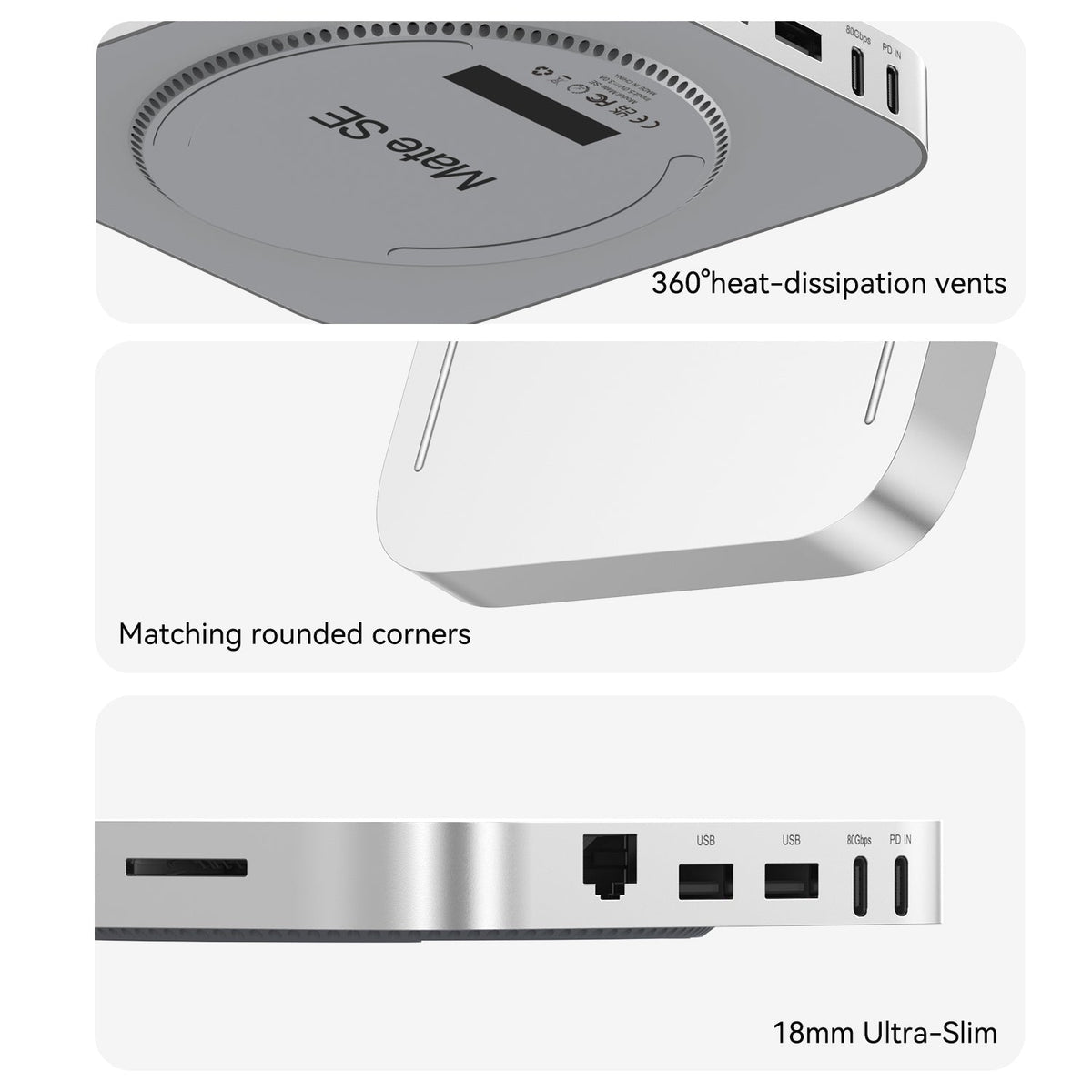

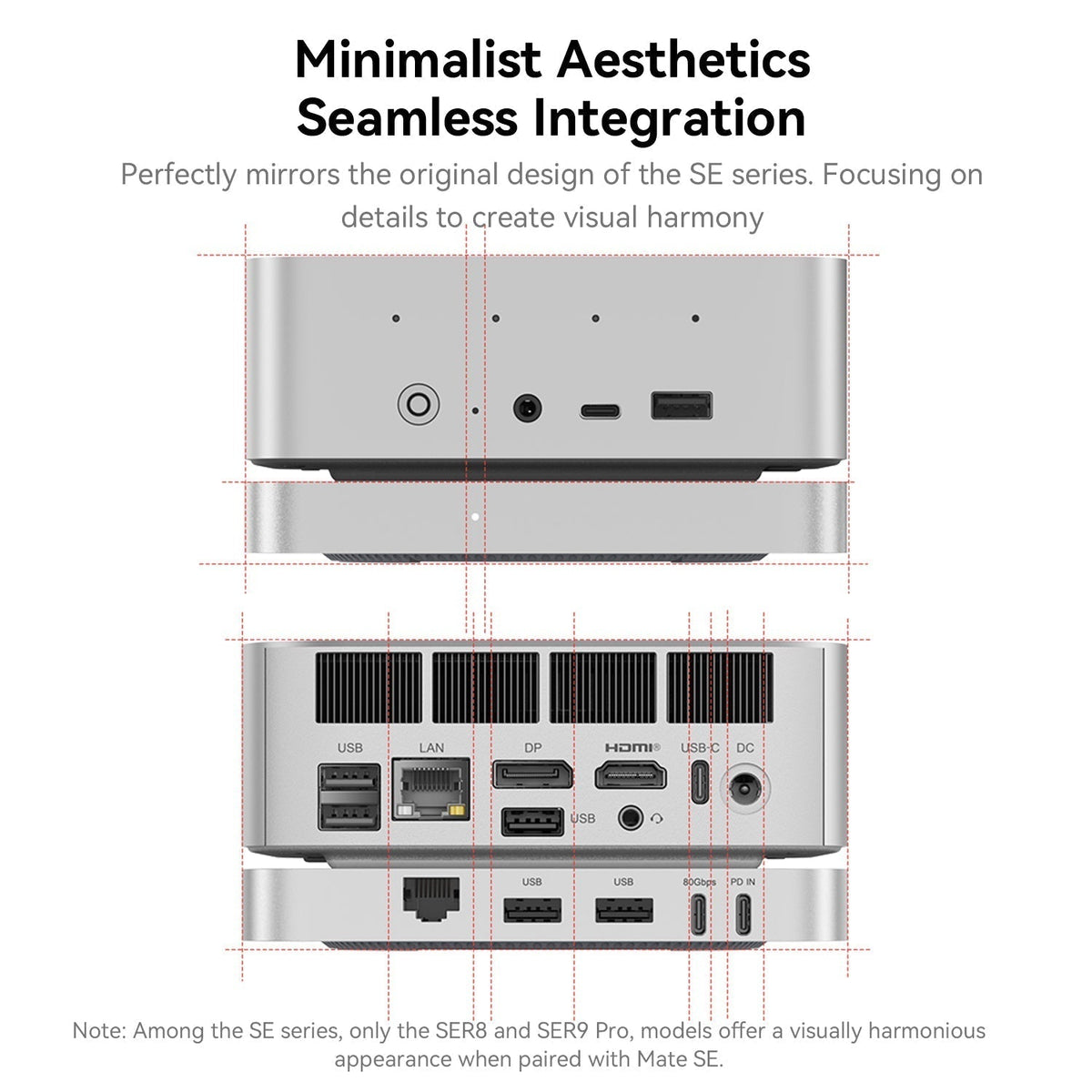

- Matched industrial design: A slim 18mm aluminum-alloy profile with a 135 x 135mm footprint sits flush against the SER-series form factor.

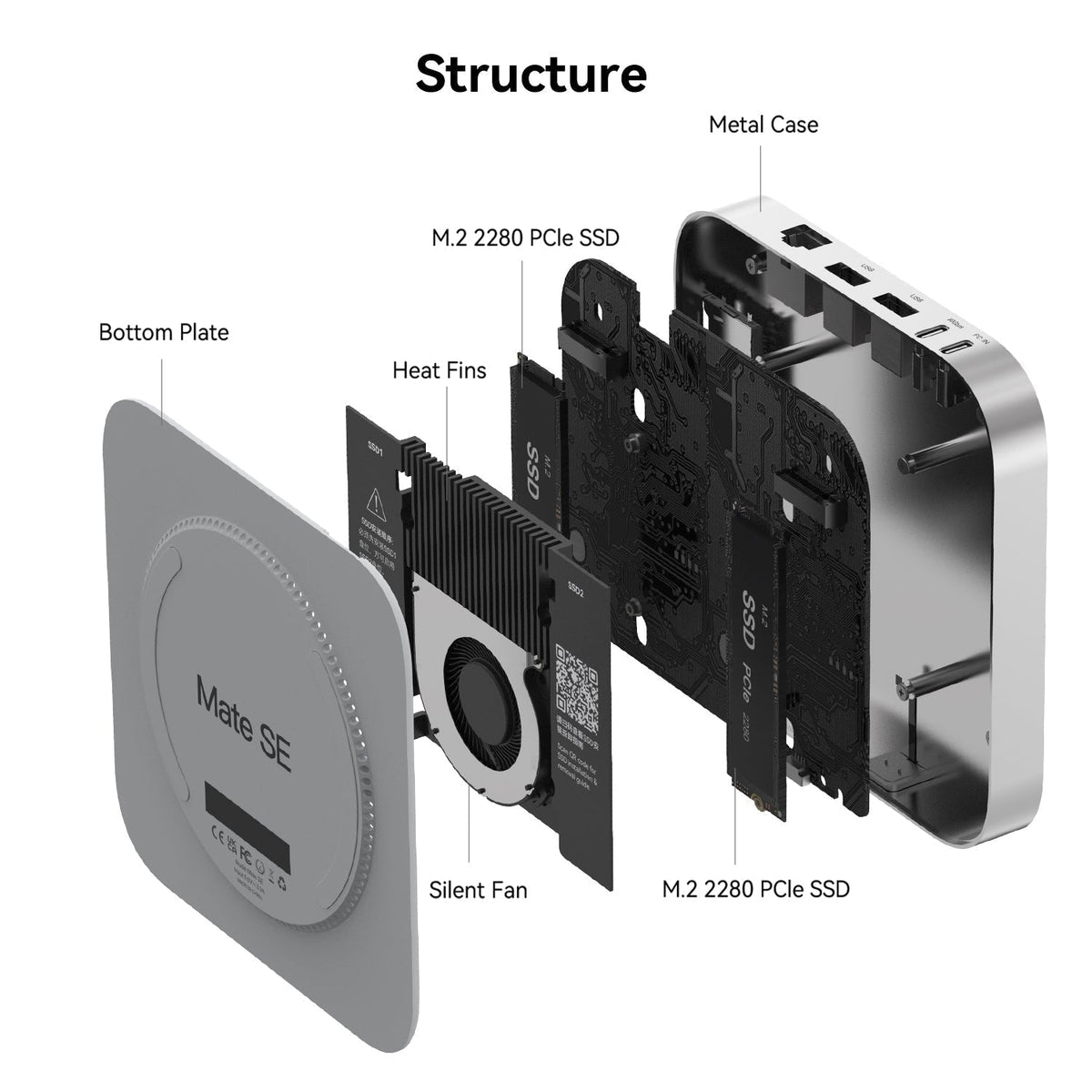

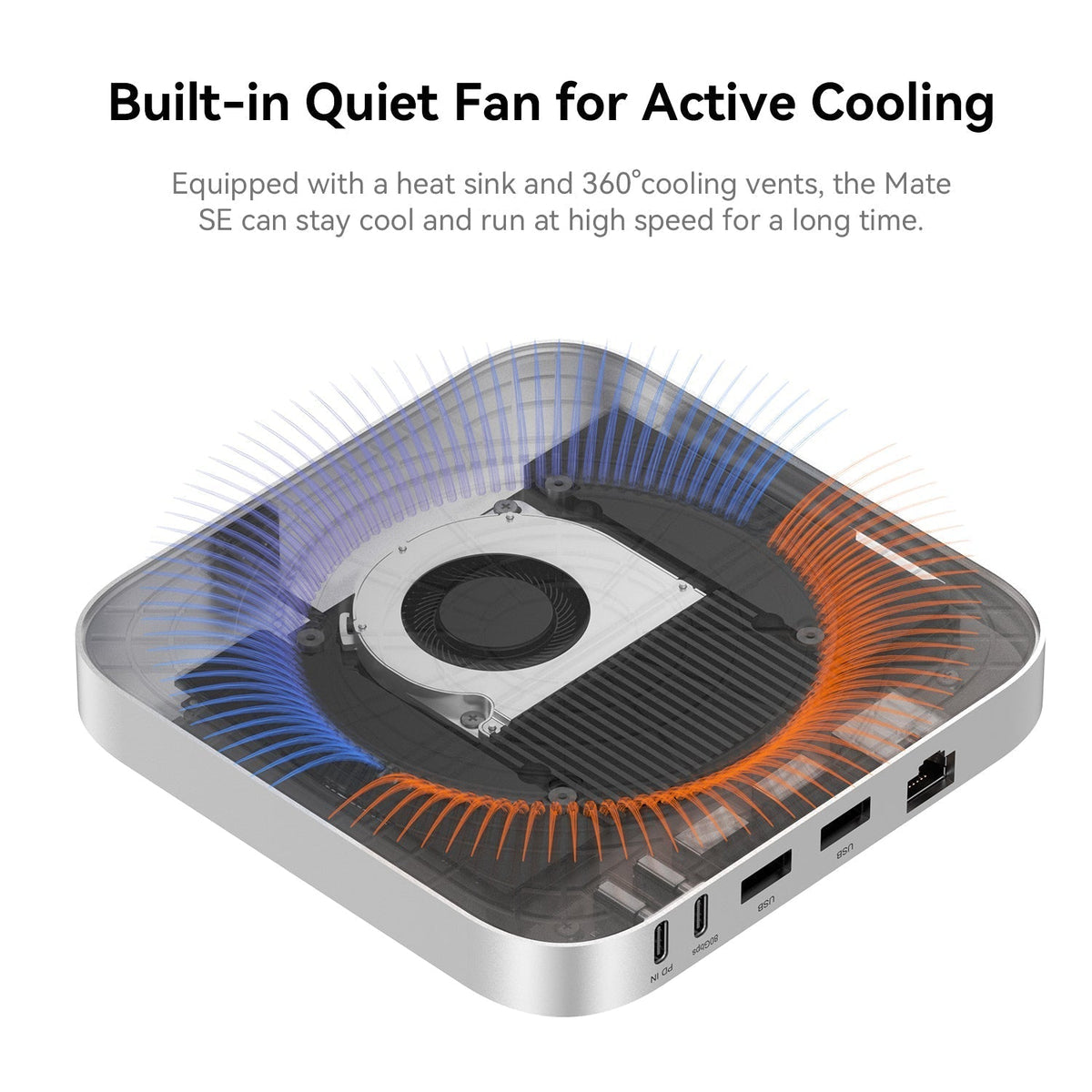

- Active cooling: A built-in fan and heatsink with ventilation channels keep the installed SSDs from thermal-throttling during large, sustained transfers.

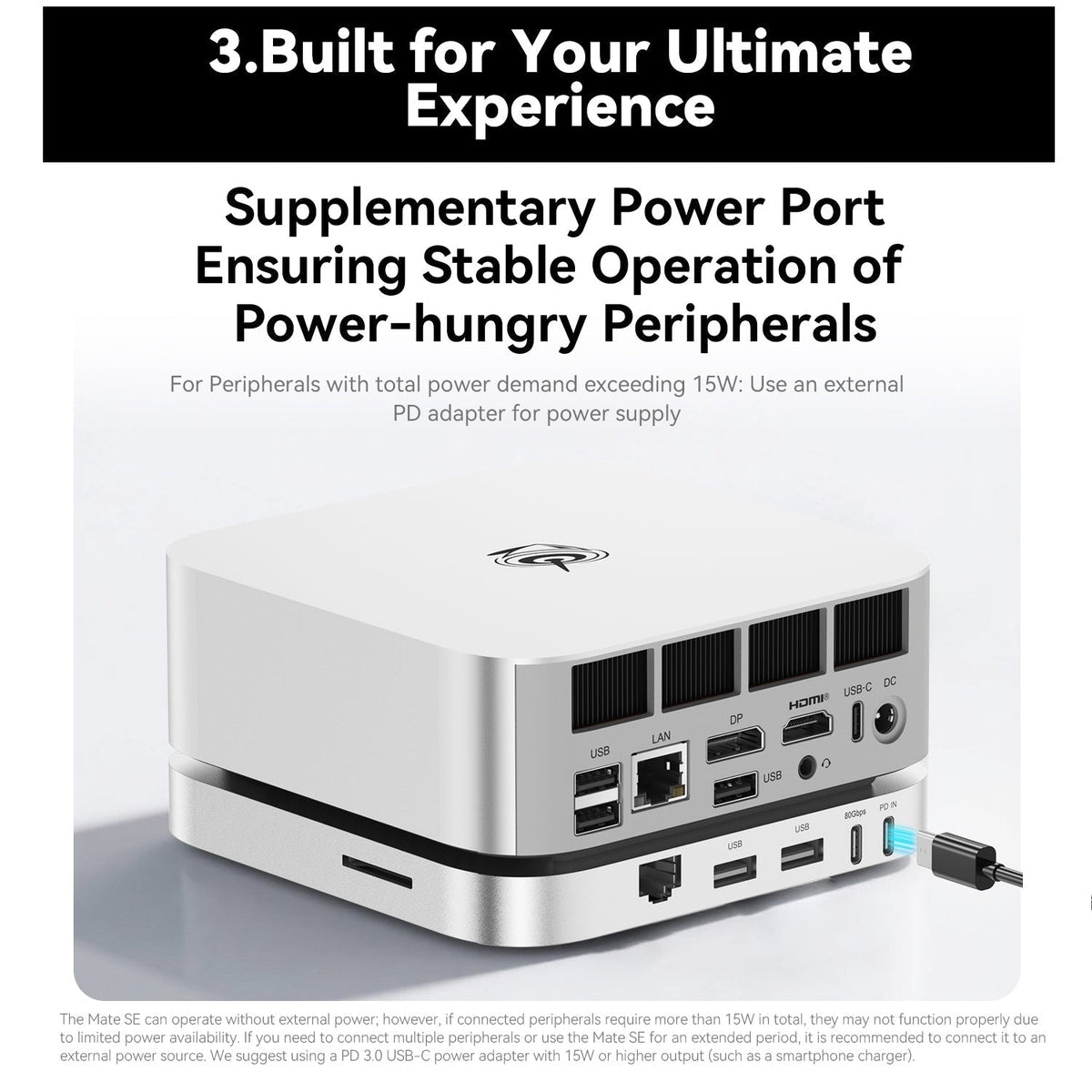

- Flexible power delivery: Peripherals under 15W draw power directly from the host mini PC; an additional USB-C PD input supports higher-demand SSDs and devices beyond that threshold.

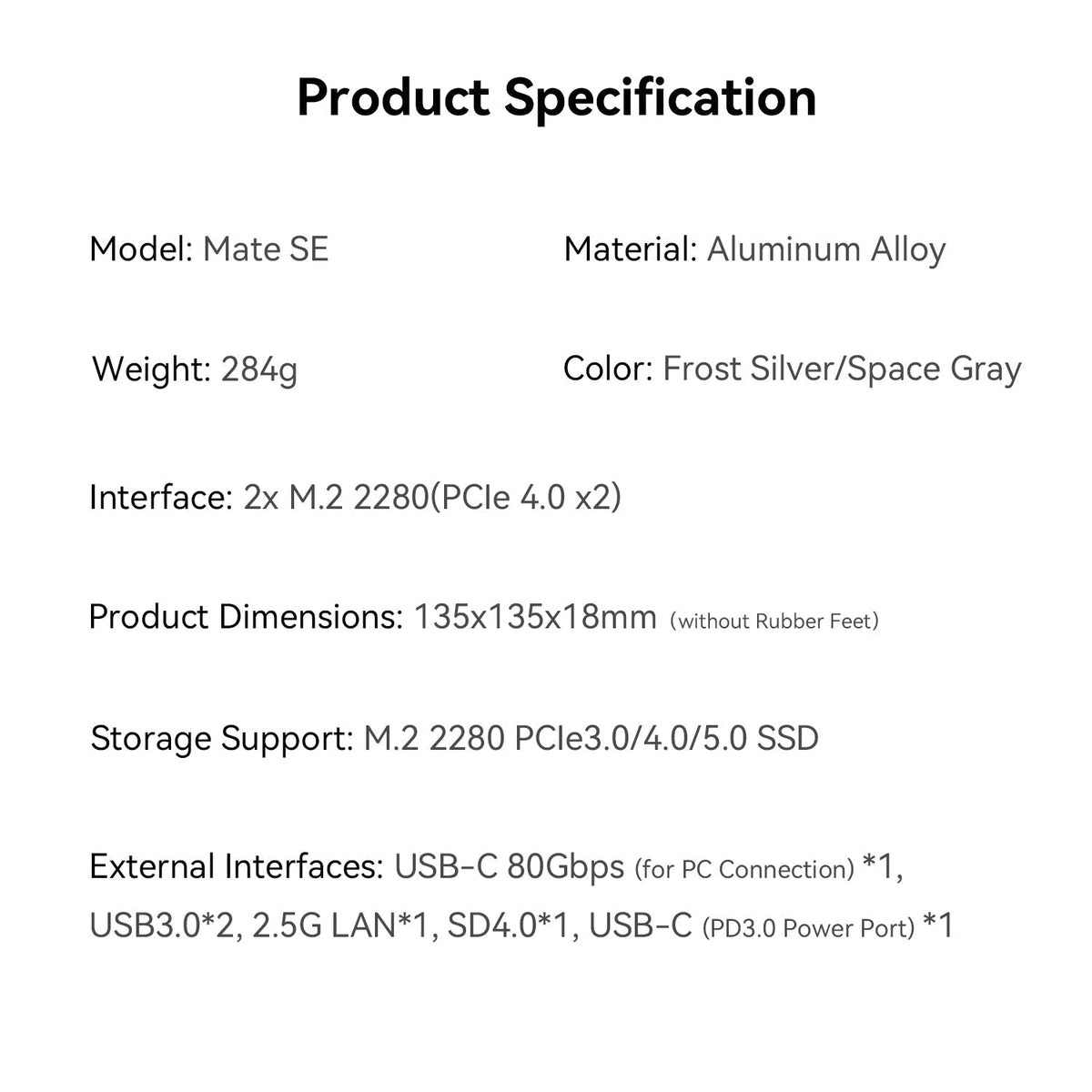

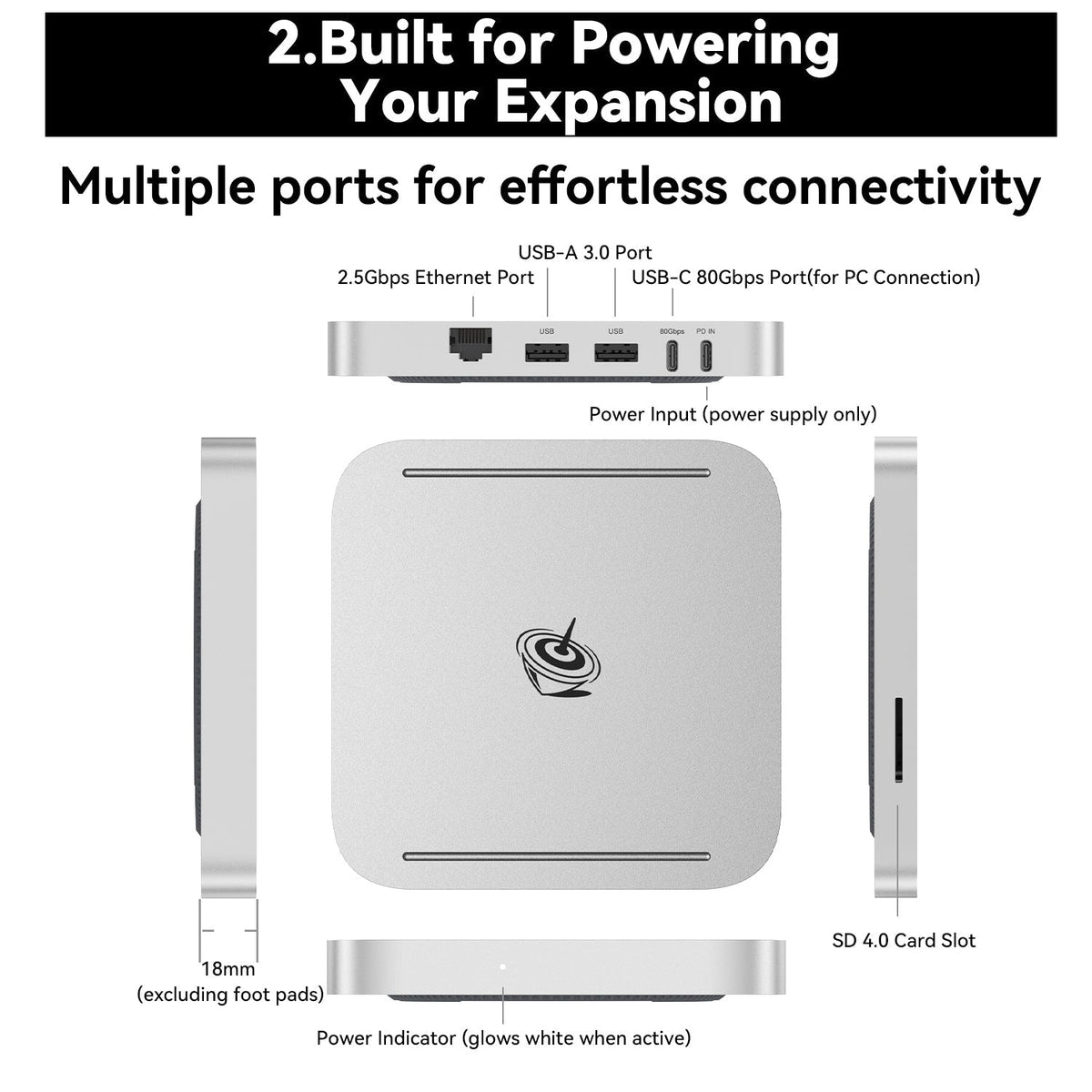

Specifications
| Spec | Detail |
|---|---|
| Host compatibility | Beelink SER8, SER9 Pro, SER9 MAX, SER10 MAX |
| Host connection | USB-C, up to 80Gbps data transfer |
| Storage | Dual M.2 PCIe 4.0 x2 SSD slots, up to 16TB total capacity |
| Networking | 2.5Gbps Ethernet port |
| Other ports | SD 4.0 card reader, 2x USB-A 3.0 (up to 15W combined) |
| Power | Bus-powered under 15W from host; USB-C PD input for higher-power SSDs/devices |
| Cooling | Active fan + heatsink with ventilation channels |
| Build | Aluminum alloy, Frost Silver finish |
| Dimensions | Approx. 135 x 135 x 18mm profile |
| Included accessories | 2x USB-C to USB-C cables rated for 80Gbps (fitted for SER8/SER9 Pro; SER9 MAX/SER10 MAX owners may need a compatible Thunderbolt/USB4 cable of their own) |
Good to know

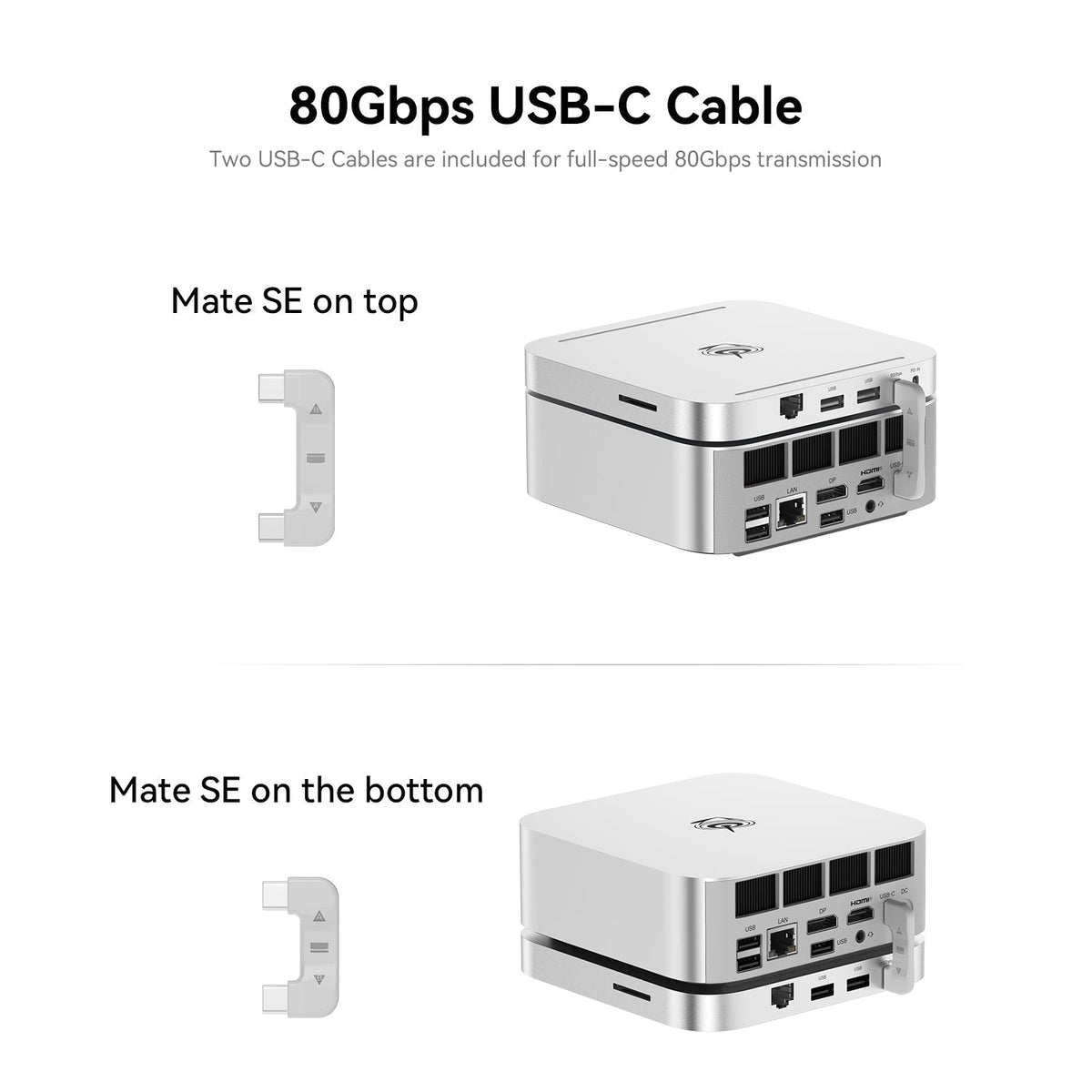

- Two USB-C to USB-C cables rated for the full 80Gbps are included. The in-box cable is fitted specifically for SER8 and SER9 Pro owners, so if you are pairing the Mate SE with a SER9 MAX or SER10 MAX, check that your cable is rated for the full link speed.
Choose the Mate SE if you own one of the four supported SER-series models and want storage, 2.5GbE and a card reader over one cable. If you need four Ethernet ports for routing, that is a different dock.
